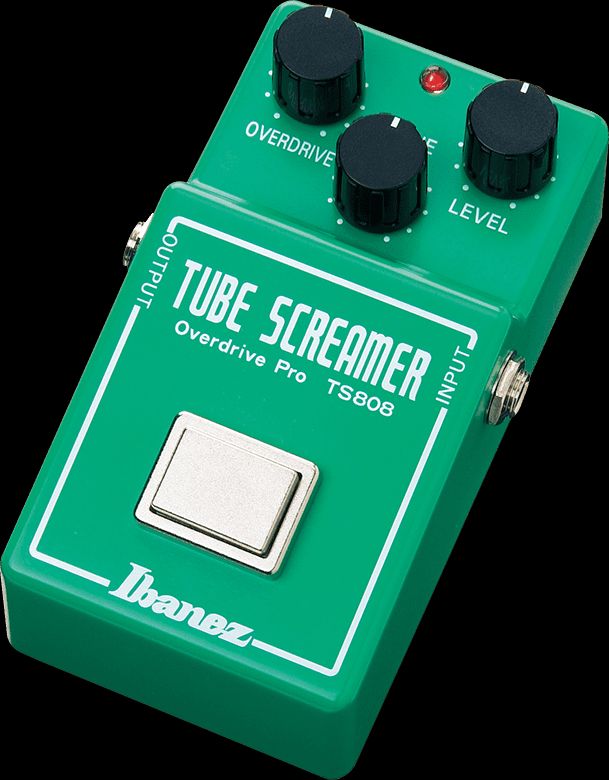

Ibanez TS808

The Ibanez TS808 Tube Screamer is the most influential overdrive pedal ever made. Designed by Nisshin engineer Susumu Tamura and released in 1979, the TS808 established a tonal template — a midrange-pushed, smooth, slightly compressed overdrive — that has been copied, modified, and re-released by virtually every pedal manufacturer in the decades since. Stevie Ray Vaughan more or less defined the sound of modern blues guitar with one in front of his Fender amps, and the pedal has appeared on countless rock, country, and metal records.

The circuit is built around a single op-amp gain stage with two silicon clipping diodes (1N914) wired in anti-parallel in the op-amp's feedback path. This soft-clipping topology is what gives the Tube Screamer its characteristic smooth, compressed break-up — quite different from the harder clipping of distortion pedals like the RAT or Boss DS-1. The op-amp itself has been a topic of obsessive interest for decades, with the original JRC4558D (Japan Radio Company) being the most sought-after variant. In practice the clipping diodes have far more influence on tone than the op-amp does — most players cannot reliably distinguish 4558-series variants in a blind test — but vintage TS808s with original JRC4558D chips still command premium prices on the used market.

Three knobs handle the controls: Drive sets the amount of gain, Tone shapes the treble response, and Level handles output volume. The internal EQ shape is what most people think of when they think "Tube Screamer" — a pronounced midrange push around 700-800Hz with rolled-off bass below the gain stage. This mid-bump is the reason the pedal is so popular for pushing the front end of an already-overdriven amp into singing lead break-up: the bass is tightened, the mids cut through, and the treble is smoothed by the soft clipping. It does not need to be a primary distortion source — many players use it as a clean boost into a driven amp, and that is how Stevie Ray Vaughan typically deployed it.

The TS808 was succeeded by the TS9 in 1982 (different output stage, slightly brighter), then a series of variants and reissues. The current standard TS808 reissue replicates the original spec including the JRC4558D op-amp, in a die-cast metal chassis with the original buffered bypass. The TS808HW (2008) was the first Tube Screamer with true-bypass switching and hand-wired construction in a more durable metal enclosure. Other current variants include the TS Mini (compact format), the TS9DX Turbo (with extra Mode switch), and various Maxon reissues — Maxon being the OEM that built Tube Screamers for Ibanez originally.

Who Is This For? The TS808 is the obvious choice for guitarists who want the classic Tube Screamer mid-pushed overdrive. It suits blues, country, classic rock, and modern rock players who use it as a primary low-gain drive or as a boost into a cranked amp. Metal players have used Tube Screamers for decades to tighten high-gain amps — narrowing the bass and pushing mids ahead of a Mesa or Marshall produces a defined, articulate high-gain rhythm tone. The strong used market means clean examples are easy to find, and the consistent spec across reissues makes the current production model an excellent option for anyone who doesn't want to chase vintage examples.
