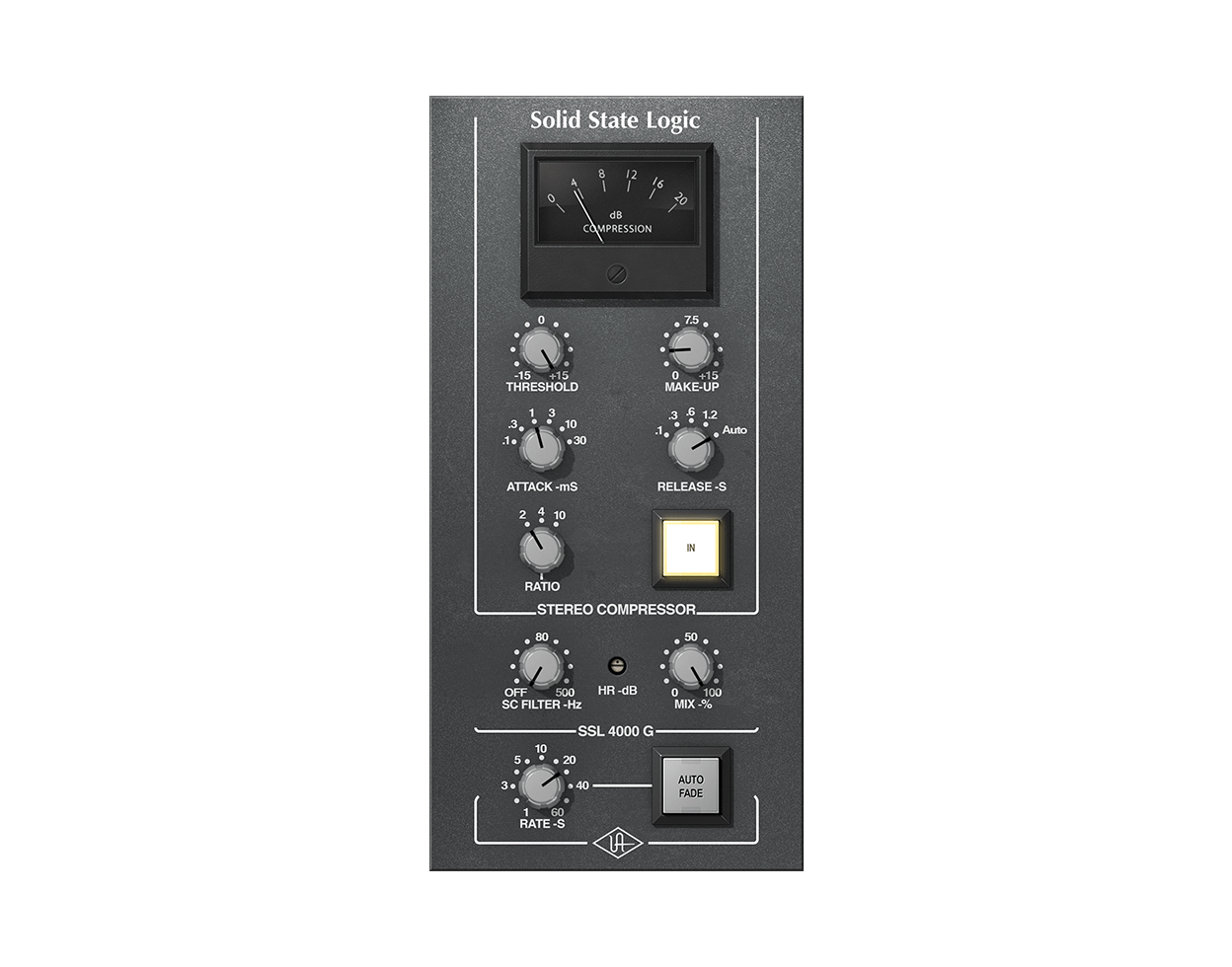

UAD SSL 4000 G Bus Compressor

The UAD SSL 4000 G Bus Compressor is Universal Audio's ground-up re-emulation of the SSL G-Series console bus compressor, built using SSL's proprietary circuit schematics. Where earlier emulations approximated the hardware's behaviour, this plugin models the CV (control voltage) summing circuitry at the heart of the compressor's characteristic sound — the mechanism that produces the glue effect that made the hardware famous.

The core control set mirrors the hardware faithfully: stepped attack and release times, three ratio options, a continuous threshold knob, and the programme-dependent Auto release mode. What UA adds is a set of enhancements that extend the hardware's limited control set for modern mixing contexts.

The SC Filter sweeps continuously from 20Hz to 500Hz — more flexible than the fixed points on competing emulations — and affects only the sidechain detection circuit, not the audio path. This is the primary tool for managing low-frequency pumping on a mix bus with heavy bass or kick drums.

The Mix knob provides inline parallel compression without external routing. The Headroom control is unique to UA's emulation: it shifts the plugin's internal operating reference level, changing how the modelled circuit responds to the signal. Lower settings push the circuit into more non-linear behaviour — useful for subtle harmonic character and a tighter, more coloured sound. Higher settings give a cleaner response closer to the hardware's intended operating conditions.

The Auto Fade reproduces the SSL console's built-in fade function, providing the characteristic SSL fade taper at durations up to 60 seconds. It can be automated within any DAW, and is one of the few features this plugin shares with Waves' emulation but not SSL's own Bus Compressor 2.

One genuine limitation worth noting: the UAD version is always stereo-linked with no dual-mono or mid/side mode, which restricts certain creative and corrective applications compared to SSL's own plugin.

The plugin is fully native — no Apollo interface or UAD-2 DSP hardware required — and works in any VST3, AU, or AAX-compatible DAW.

Who Is This For?

Engineers who want a highly detailed SSL G-Series emulation and value the Headroom control for circuit-level character shaping. The continuously variable SC Filter and Auto Fade give it practical advantages over competing emulations, though the lack of dual-mono mode is a real constraint for certain applications.
